Mini Hobby Lathe Machine C6132/ C6136/ C6140 Universal Lathe Machine
lathe machine is a machine tool that mainly turns a rotating workpiece with a turning tool. On the lathe, drills, reamer, reamer, taps, dies and knurling tools can also be used for machining.Wide range of processing objects, large adjustment range of spindle speed and feed rate, can process the inner and outer surfaces, end faces and internal and external threads of the workpiece. This type of lathe is mainly operated by workers and has low production efficiency. It is suitable for single-piece, small batch production and repair workshops.
| Specifications | C6132 | C6136 | C6140 | C6150 | C6160 | C6170 |
| Capacity | Max. Swing over bed | 320mm | 360mm | 400mm | 500mm | 600mm | 700mm |
| | Max. rotating diameter | 200mm | 200mm | 238mm | 300mm | 400mm | 500mm |
| | Center distance | 750,1000,1500,2000mm |
| | Spindle hole | 52mm(82mm) |
| Spindle | Spindle nose | ISO-C6(C8) |
| | Spindle tap | MT6 |
| | Spindle speeds(Number) | 40-1400rpm (9 Steps) |
| Feed | Metric threads range(Kinds) | 0.5-14mm (20 Kinds) |
| | Inch threads range(Kinds) | 2-40/inch (28 Kinds) |
| | Module threads range(Kinds) | 0.25-3.55mπ (11 Kinds) |
| | Compound rest travel | 150mm |
| | Cross slide travel | 180mm |
| | Cross-section size of tool shank | 20×20mm2 |
| Tailstock | Dia. of tailstock sleeve | 65mm |
| | Taper of tailstock sleeve | MT5 |
| | Travel of tailstock sleeve | 140mm |
| Main motor power | 4KW | 5.5KW | 7.5KW |
| Machine size (L*W*H mm) | Overall dimensions for750mm | 2100×1150 ×1550mm | 2100×1150 ×1550mm | 2100×1150 ×1550mm | 2100×1150 ×1550mm | 2100×1150 ×1550mm | 2100×1150 ×1550mm |
| | Overall dimensions for1000mm | 2350×1150 ×1550mm | 2350×1150 ×1550mm | 2350×1150 ×1550mm | 2350×1150 ×1550mm | 2350×1150 ×1550mm | 2350×1150 ×1550mm |
| | Overall dimensions for1500mm | 2850×1150 ×1550mm | 2850×1150 ×1550mm | 2850×1150 ×1550mm | 2850×1150 ×1550mm | 2850×1150 ×1550mm | 2850×1150 ×1550mm |
| | Overall dimensions for2000mm | 3350×1150 ×1550mm | 3350×1150 ×1550mm | 3350×1150 ×1550mm | 3350×1150 ×1550mm | 3350×1150 ×1550mm | 3350×1150 ×1550mm |
| Weight(kg) | Weight for 750mm | 1300kg | 1500kg | 1600kg | 1700kg | 1800kg | 1900kg |
| | Weight for 1000mm | 1400kg | 1600kg | 1700kg | 1800kg | 1900kg | 2000kg |
| | Weight for 1500mm | 1600kg | 1800kg | 1900kg | 2000kg | 2100kg | 2200kg |
| | Weight for 2000mm | 1800kg | 2000kg | 2100kg | 2200kg | 2300kg | 2400kg |
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
1. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
2.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
3. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
4. What is the package of the machines?
A: The machines standard will be packed in plywood case.
Product Tags:
|
|

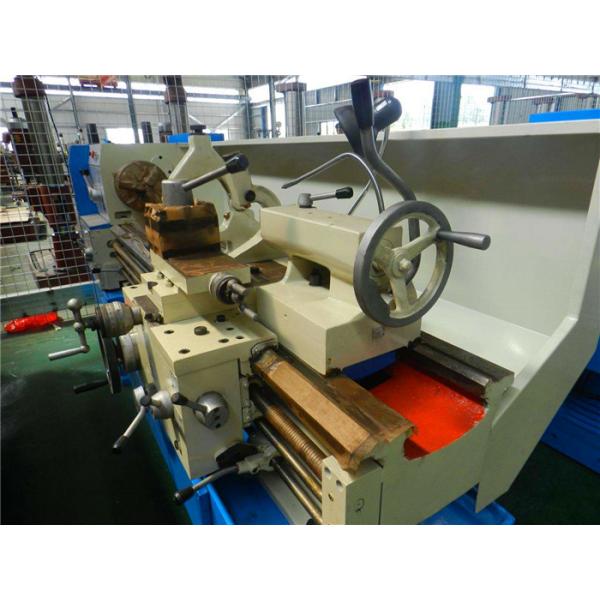

Mini Hobby Lathe Machine C6132/ C6136/ C6140 Universal Lathe Machine Images
|
